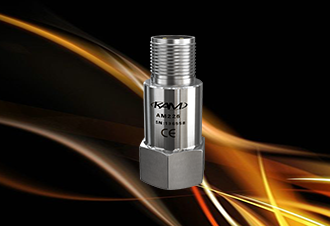

- Explosion-proof Sensor Sealed piezoelectric acceleration transducer for industrial use is designed for monitoring the vibration generated by rotary equipment in severe environment. It applies the IEPE two-wire voltage transmission technology of industrial standard and 2-10mA standard constant current to supply power. The internal circuit and shell of the accelerometer are completely separated to prevent noise produced by the grounding circuit; the unique annular shear resistance design can prevent transient change of heat and signal distortion caused by the high transverse vibration; while the low noise electronic and temperature compensation design can provide the precise measurement results in the entire temperature range; the large response range will be helpful for almost meeting the requirements of each customer.
Applicable Unit Type
Pump Air blower
Fan Turbine compressor
Motor Centrifugal separator
Gear box
Features
CSA/ATEX Approved
High Performance at a Reasonable Price
0,5 - 15000 Hz Frequency Response
100 mV/g Sensitivity ±10%
Requires Intrinsic Safety Barrier
